TOH/MFS20EL
| In Stock | Yes |
| Manufacturer Part No. | MFS20EL |
| Brand | Tohatsu |
| List Price: | Special Order |
| Product code: | TOH/MFS20EL |
| UPC/EAN: | 352507 |
| Delivery Options: |
|
Product Information

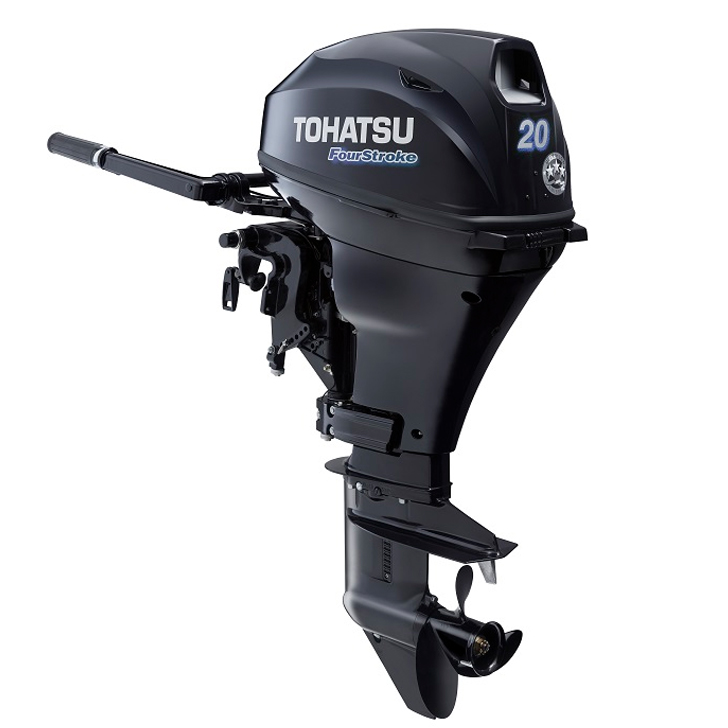

Tohatsu 20 hp EFI 4-Stroke Benefits
- Battery-less Electronic Fuel Injection (EFI) operation
- Light and compact
- Advanced EFI for smooth operation, easier starting and increased fuel efficiency
- “Light Weight ECO Sport” development and design concept
- Simpliq™ Technology – the result of continuous technological innovation fueled by the pursuit of nothing less than the very best
- Designed with innovative technology
- Available in a wide variety of models; Remote/Power Tilt models now available in both Aqua Marine Blue (MFS20E) and Beluga White (MFS20EW)
- Canister style oil filter for easy replacement
- A high quality, user-friendly fuel water separator
- Greatly reduced vibration for a smoother and quieter ride
- Ultra Low emission, EPA and CARB 3-Star rating approved
- 5 Year limited warranty
Multi-Function Tiller Handle
Stop Switch, Front Shift, Friction Adjusting Screw and Power Tilt Switch (PTS: on power tilt models only) are integrated into the tiller handle for convenience.
Stowable Carrying Handle
We’ve incorporated a carrying handle on the front that can easily be tucked away when not in use
Fuel Water Separator
A high quality, user-friendly fuel water separator is standard equipment on all EFI 20 | 15 | 9.9 motors. This unique yet simple fuel water separator doesn’t require the use of a single tool to drain the water.
Center of Gravity Improved
By moving heavy components (i.e. crankshaft, driveshaft) 30mm forward compared to the previous model, the tilting weight has decreased by 26% from the previous version, making it much easier for users to tilt manually.
Compact Fuel System Layout for Easy Maintenance
The Vapor Separator Tank (VST) has been designed to integrate the high pressure fuel feed pump, regulator, and fuel cooler into one component.
SPECIFICATIONS
| Engine (No. of Cylinder) | 2 |
|---|---|
| Output | 20 hp (14.7 kw) |
| Displacement | 333 cc (20.32 cu.in.) |
| Bore x Stroke | 61 x 57 mm (2.40 x 2.24 in) |
| Max. RPM Range | 5,400 – 6,100 |
| Starting | Electric or Manual |
| Control Type | Remote Control or Tiller Handle |
| Gear Shift | Forward – Neutral – Reverse |
| Gear Ratio | 2.15:1 |
| Propeller Selection Range | 6″ – 10″ |
| Transom Height | 15″, 20″, 25″ |
| Fuel | Unleaded Gasoline (87 Octane) |
| Oil Type | NMMA Certified FC-W® 4-stroke oil** SAE 10W-30/40 (SF, SG, SH, SJ) |
| Oil Capacity | 1.07 qt. (1 L) |
| Fuel Tank | 3.1 US Gal. (12 Lit) Separate Fuel Tank (Tiller models) |
| Weight* | 95 lbs. (43 kg) |
| Alternator Output | Optional: 12V, 145W, 12A (Standard on Electric Start Models) |
| Digital ECU Controlled Ignition System | Standard |
| Start In Gear Protection | Standard |
| Thermostat Controlled Cooling System | Standard |
| Through-The-Prop Exhaust | Standard |
| Oil Pressure Warning | Standard |
| Shallow Water Drive | Standard |
| Power Tilt | Option |
Product Data
| SKU: | 352507 |
