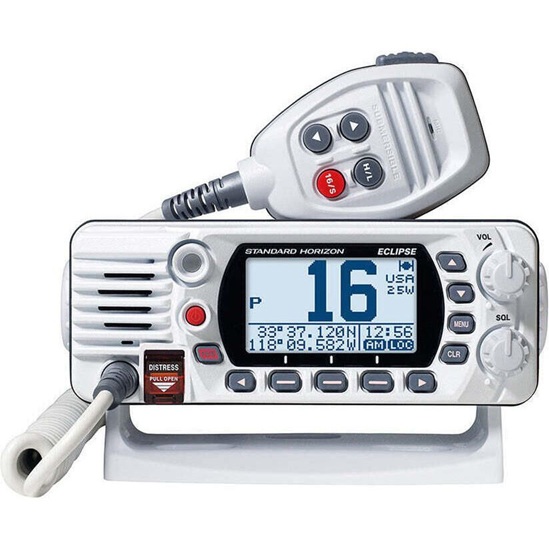

VHF, Fixed Mount Eclipse Series White 25W

Product Information

Features:

• Built-in 66 Channel WAAS GPS receiver
• Affordable Ultra Compact Class D Fixed Mount VHF Radio
• Meets ITU-R M493-16 Class D DSC (Digital Selective Calling)
• Replaces older Eclipse+ and Eclipse DSC Models
• Radio controls on the Microphone
• E2O Easy to Operate Icon/Menu System
• Oversized Full 31 x 55 mm (1 7/32″ x 2 5/32″)dot matrix display
• Built-in Separate Receiver for CH70 (Receiving DSC Calls)
• DSC test call and Auto DSC channel change selection
• GPS position and Time Shown on a Full-dot Matrix Display
• NMEA In and Output Connections to a Compatible GPS Chart Plotter
• Programmable soft keys
• Automatically poll the GPS position of up to 6 ships using DSC
• Submersible IPX8 waterproof rating (1.5 m or 4.92′ for 30 minutes)
• All USA/International and Canadian Marine Channels
• Preset key used to recall up to 10 favorite channels
• NOAA weather channel selection with Weather Alert
• Programmable Scan, Priority Scan, and Dual Watch

Specifications:

• Transmit Power: 25W
• Built-in GPS: Yes (66-channel WAAS)
• DSC Classification: ITU-R M493-16 Class D
• Channel 70 Receiver: Yes
• Frequency Range: 156-158 MHz (marine band), shore stations up to 163 MHz; line-of-sight dependent
• Display Type: High-resolution dot matrix
• Weather Alerts: NOAA with Weather Alert function
• NMEA 2000: No
• NMEA 0183: Yes
• Hailer: No
• Intercom Capability: No
• Remote Mic Capable: No
• Scrambler Capable: No
